Fire Extinguishers

Portable and wheeled extinguishers and extinguisher parts, to order alongside our cabinets, hose reels and hydrant equipment. For distributors, importers and OEM brands.

On this page
5 products: portable, wheeled and parts
Order
Baseline 200 pcs per model under per-model order terms; mixed orders accepted
Lead time
Sample and bulk schedules follow confirmed order requirements

The extinguishers we supply

A portable extinguisher is the first thing people reach for when a fire starts. We supply portable dry powder, CO2 and water units, wheeled trolley units from 25 kg to 100 kg, and the valves, hoses, horns and gauges extinguisher makers and refill workshops order.

They can share a container with our cabinets, hose reels and hydrant equipment.

  1. What are you ordering?

Fire extinguisher products

The 5 cards group our portable, wheeled and spare-part ranges; some cards cover several catalogue models. Tap a card or Get a quote and the quote form opens with that range filled in.

Portable fire extinguishers

Hand-held units by agent: ABC dry powder, CO2 and water.

ABC Dry Powder Fire Extinguisher 1–8 kg

ABC Dry Powder Fire Extinguisher 1–8 kg

Capacity
1 / 2 / 3 / 4 / 6 / 8 kg
Agent
ABC dry powder
Cylinder
Steel
Type
Portable, stored pressure with gauge

Portable extinguisher for vehicles, homes, offices and warehouses.

CO2 extinguisher 25-WD-C5 / 22-WD-C5, 5 kg.

CO2 Fire Extinguisher, 2 kg to 10 kg

Capacity
2 kg & 5 kg (22-WD-C2/C5); 2 kg to 10 kg (25-1 to 25-16)
Cylinder steel
34CrMo4 on 25-1 to 25-16
Fire rating
21B on 22-WD-C2 (2 kg); 70B on 22-WD-C5 (5 kg)
Operating temperature
-30 °C to +60 °C (22-WD-C2/C5; 25-1 to 25-16)

The photos show 25-WD-C5 (5 kg) and 25-WD-C2 (2 kg), listed in the table as 22-WD-C5 and 22-WD-C2. The 34CrMo4 range is listed separately as series 25-1 to 25-16.

Models: 25-WD-C2 / 22-WD-C2; 25-WD-C5 / 22-WD-C5 (photo/table aliases). Separate range: 25-1 to 25-16.

Water Fire Extinguisher, 9 L

Water Fire Extinguisher, 9 L

Capacity
9 L (table 22-WD-W9)
Agent
Water
Fire rating
21A (table 22-WD-W9)
Working pressure
12 bar; 5 °C to +60 °C (table 22-WD-W9)

Stored-pressure water extinguisher configuration for Class A risks.

Models: 25-WD-W9 / 22-WD-W9 (the same 9 L water model, shown by its photo/table aliases).

Wheeled fire extinguishers

Two-wheel trolley units from 25 kg to 100 kg.

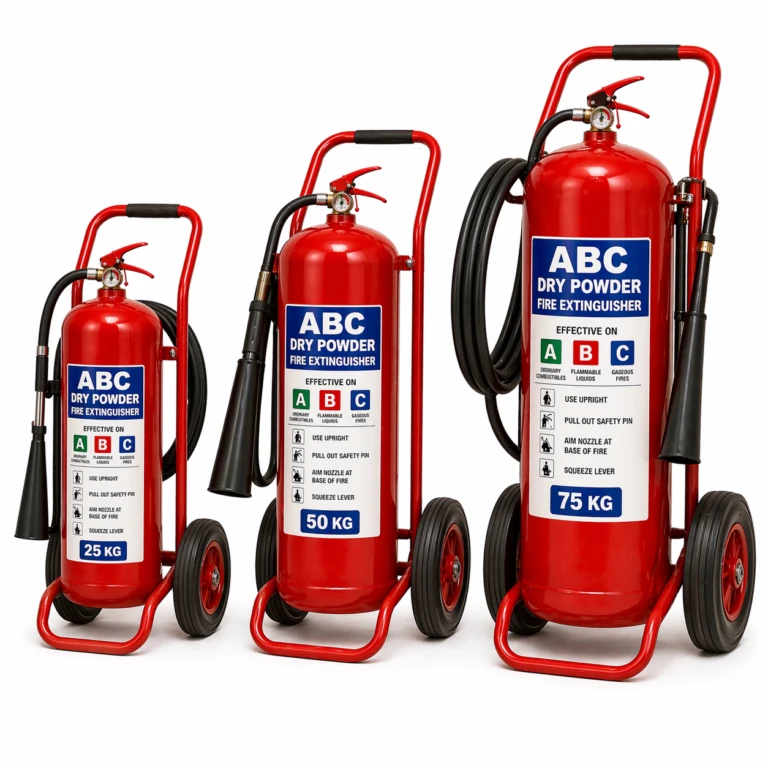

Wheeled Fire Extinguisher, 25 kg to 100 kg

Wheeled Fire Extinguisher, 25 kg to 100 kg

Capacity
25, 30, 35, 50, 75 or 100 kg
Working pressure
14 bar at 20 °C
Discharge time
30 to 58 s
Temperature range
-30 °C to +60 °C

Two-wheel trolley extinguisher range in six listed capacities from 25 kg to 100 kg.

Models: 26-250, 26-310, 26-400 (25, 30, 35, 50, 75, 100 kg)

Extinguisher parts

For extinguisher makers and refill workshops.

Extinguisher Parts: Valves, Hoses, Horns and Gauges

Extinguisher Parts: Valves, Hoses, Horns and Gauges

Valve threads
15-30: PZ27.8×14 in / Φ21.4×14 out; other 15-series rows include PZ19.2×14 in and Φ21.7×14 out
Hose connection
By model (including M16x1.5 on 18-02/014 and M14x1.5 on 18-07/011)
CO2 horn models
18-25/26/29 (1, 2 kg); 18-30 (2.3 kg); 18-27 (4, 5 kg); 18-28 (5, 7, 9 kg); 18-31 (5, 7 kg); 18-32 (25, 50 kg)

Spare and OEM parts for extinguisher makers and refill workshops.

Models: Valves 15-30 to 15-40, 16-01 to 16-40; hoses and horns 18-01 to 18-32; gauges 28-01 to 28-16

Where each model is used

Extinguishers are stocked by the risk at the place they hang and by who buys them.

  • Offices, homes, vehicles and warehouses

    For general portable stock, the ABC Dry Powder Fire Extinguisher 1–8 kg uses a steel cylinder, stored pressure with gauge, in 1, 2, 3, 4, 6 and 8 kg for vehicles, homes, offices and warehouses. For Class A water stock, catalogue table 22-WD-W9 lists 9 L water rated 21A at 12 bar working pressure and 5 °C to +60 °C. Portable extinguishers can share a mixed container with cabinets, hose reels and hydrant equipment.

  • CO2 Class B and alloy-steel cylinder ranges

    Catalogue CO2 listings cover two separate tables: 22-WD-C2 (2 kg, 21B, 55 bar, -30 °C to +60 °C) and 22-WD-C5 (5 kg, 70B, 55 bar, -30 °C to +60 °C), alongside the 25-1 to 25-16 alloy-steel range in 34CrMo4 from 2 kg to 10 kg (-30 °C to +60 °C).

  • Wheeled trolley stock (25 kg to 100 kg)

    Catalogue models 26-250, 26-310 and 26-400 cover wheeled trolley capacities of 25, 30, 35, 50, 75 and 100 kg, with 14 bar working pressure at 20 °C, discharge times from 30 to 58 s across the six sizes, and a -30 °C to +60 °C temperature range.

  • Refill workshops and extinguisher makers

    Extinguisher Parts: Valves, Hoses, Horns and Gauges can be ordered separately from complete units. Valve 15-30 lists PZ27.8×14 inlet and Φ21.4×14 outlet while other 15-series models list PZ19.2×14 inlet and Φ21.7×14 outlet; hose fittings vary by model (such as M16x1.5 on 18-02/014 and M14x1.5 on 18-07/011), and CO2 horn codes 18-25 to 18-32 are grouped by printed cylinder weights (1/2 kg, 2.3 kg, 4/5 kg, 5/7/9 kg, 5/7 kg, and 25/50 kg).

How to choose an extinguisher

Agent type, portable-or-wheeled format and complete-unit versus spare-part scope separate the five ranges.

Agent and listed ratings
ABC dry powder covers 1–8 kg portable stock; CO2 covers 22-WD-C2/C5 (21B / 70B) and 25-1 to 25-16 (34CrMo4, 2–10 kg); water covers 22-WD-W9 (9 L, 21A).
Portable or wheeled
Portable units run from 1 kg to 10 kg, or 9 L for water. Wheeled units run from 25 kg to 100 kg.
Complete units or parts
Refill workshops and extinguisher makers can order valves, hoses, CO2 horns and gauges on their own.

What to put on your inquiry

  1. Agent and sizeABC powder, CO2 or water, and the kg or litre size.
  2. Quantity per modelBaseline MOQ: 200 pcs per model, subject to product, configuration, certification, mixed-order structure, packaging and schedule. Mixed orders accepted; extinguishers can share a container with our other ranges.
  3. Portable or wheeledOr parts only: valves, hoses, horns, gauges.
  4. Private labelLabel artwork and cylinder colour.
The full extinguisher specification guide

Your brand on the extinguisher

Add these to your quote request and we answer for each model. More on the OEM and private label page.

  • LogoSend your label artwork for the cylinder.
  • ColourName the cylinder colour your market expects.
  • Packaging markingSend your carton marking and label artwork.

The plant behind the order

Minwen has made fire protection equipment in Nan’an, Quanzhou since 2001, and ships in bulk to distributors, importers and OEM brands. The figures cover the whole plant.

15,000 m²Plant area
20Production lines
193Staff
~45HQ containers a month
CE and CCC
CE and CCC applicability depends on the product and model.
ISO 9001
ISO 9001 certified quality management system.
UL
UL test reports available on request.

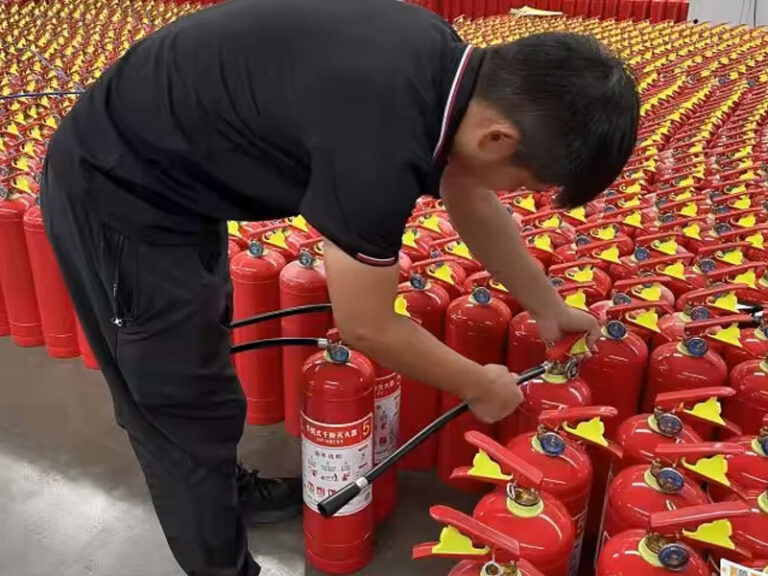

Worker checking rows of red fire extinguishers
Checking finished extinguishers on the line, Nan’an plant.
Worker beside finished red fire equipment and stacked export cartons in the packing area
Packing area, Nan’an plant.

Questions buyers ask about our extinguishers

Answers about this range. For anything else, write on WhatsApp or by email.

Which agent should I stock?

ABC dry powder covers 1–8 kg portable stock for vehicles, homes, offices and warehouses; CO2 covers Class B rated models 22-WD-C2/C5 and 34CrMo4 series 25-1 to 25-16; and 9 L water model 22-WD-W9 covers Class A risks.

Can I add extinguishers to a cabinet or hose reel order?

Yes. Baseline MOQ is 200 pcs per model, subject to product, configuration, certification, mixed-order structure, packaging and schedule. Mixed orders are accepted, and extinguishers can share one container with cabinets, hose reels and other ranges.

What sizes do the extinguishers come in?

ABC dry powder comes in 1, 2, 3, 4, 6 and 8 kg; CO2 covers 2 kg and 5 kg in table 22-WD-C2/C5 and 2 kg to 10 kg in series 25-1 to 25-16; water is 9 L in table 22-WD-W9. Wheeled trolley units come in 25, 30, 35, 50, 75 and 100 kg with discharge times from 30 to 58 s.

What fire ratings are printed in the catalogue?

Catalogue table 22-WD-C2 lists 21B (2 kg CO2), table 22-WD-C5 lists 70B (5 kg CO2), and table 22-WD-W9 lists 21A (9 L water).

What cylinder materials are listed?

The 1–8 kg ABC dry powder listing specifies a steel cylinder with pressure gauge, and CO2 series 25-1 to 25-16 specifies 34CrMo4 alloy steel cylinders.

Do you supply parts for refilling and servicing extinguishers?

Yes. Refill workshops and extinguisher makers can order valves, hoses, CO2 horns and gauges separately. Valve 15-30 lists PZ27.8×14 inlet and Φ21.4×14 outlet while other 15-series models list PZ19.2×14 inlet and Φ21.7×14 outlet; hose threads vary by model (including M16x1.5 on 18-02/014 and M14x1.5 on 18-07/011), and CO2 horn models 18-25 to 18-32 list discrete cylinder capacities (1/2 kg, 2.3 kg, 4/5 kg, 5/7/9 kg, 5/7 kg and 25/50 kg).

What temperature ranges are printed in the catalogue?

-30 °C to +60 °C is printed for CO2 models 22-WD-C2 and 22-WD-C5, CO2 series 25-1 to 25-16, and wheeled trolley models 26-250, 26-310 and 26-400; 5 °C to +60 °C is printed for 9 L water model 22-WD-W9.

MOQ, samples and lead times, certificates, private label and payment are answered once for every range in the ordering questions.

Request an extinguisher quote

Tell us the agent, size and quantity per model, and whether you need your own label.

  • Baseline MOQ: 200 pcs per model, subject to product, configuration, certification, mixed-order structure, packaging and schedule. Mixed orders accepted.
  • Samples: 15–20 days after the product, specification, certification, branding and sample requirements are confirmed. Bulk: 35–60 days from order confirmation, after specifications, certification requirements, packaging, quantity and the production schedule are confirmed.
  • Payment by T/T
